Trek Emonda ALR Disc Frameset

Trek Emonda ALR Disc Frameset
  • Color: Crimson to Dark Carmine Fade
  • Color: Slate to Black Fade
  • Color: Slate Prismatic/Black Prismatic Fade
$1,149.99
Color:
Size: Select size
Please select options Unavailable
This item is not permitted to be shipped, however it can be purchased online and picked up. Please allow 24 hours for order processing.

Details

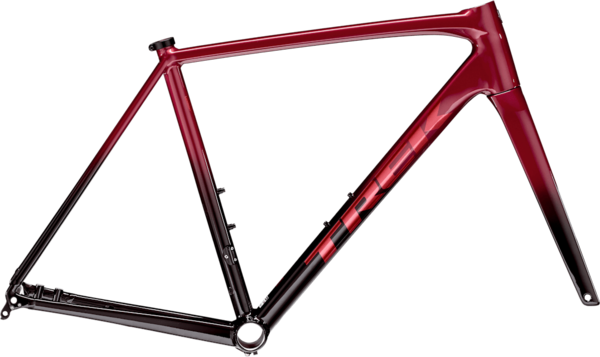

Emonda ALR Disc frameset gives you the look and performance of carbon at an alloy price point that's far friendlier on the wallet. Shaped tubes and Invisible Weld Technology make this aluminum disc road bike frame the perfect starting point for a high-performance, high-value build.

It's right for you if...
You're building up a disc road bike for club rides or races, and you want an advanced aluminum frame with the sleek looks and handling characteristics normally found only in carbon models.

The tech you get
A lightweight 300 Series Alpha Aluminum frame with shaped tubes, Invisible Weld Technology for seamless joints, 12mm thru axles, and internal cable routing. Includes a carbon fork with a carbon steerer and a headset. Built for BB86.5 bottom bracket and flat mount disc brakes.

The final word
Carbon looks and ride quality, aluminum price point. If you thought alloy couldn't contend with carbon in beauty and performance, think again. Emonda ALR is a value-minded ride that's perfectly comfortable taking a far more expensive carbon bike to the line.

Why you'll love it
- It climbs fast, corners on rails, and descends with confidence
- Disc brakes offer better braking performance and extra clearance for wider, more stable tires
- It shares the geometry of our highest-end carbon Emonda race bikes, and it gives you a ride quality that stands up in every way to far more expensive carbon bikes
- Internal cable routing extends the life of your cables and adds to the bike's sleek look
- Like every Emonda, it's built to be the lightest and fastest in its class and it’s backed by our lifetime warranty

Sizes:
SizeRider HeightInseam
47 152 - 158 cm
5'0" - 5'2"
71 - 75 cm
28" - 30"
50 158 - 163 cm
5'2" - 5'4"
74 - 77 cm
29" - 30"
52 163 - 168 cm
5'4" - 5'6"
76 - 79 cm
30" - 31"
54 168 - 174 cm
5'6" - 5'9"
78 - 82 cm
31" - 32"
56 174 - 180 cm
5'9" - 5'11"
81 - 85 cm
32" - 33"
58 180 - 185 cm
5'11" - 6'1"
84 - 87 cm
33" - 34"
60 185 - 190 cm
6'1" - 6'3"
86 - 90 cm
34" - 35"
62 190 - 195 cm
6'3" - 6'5"
89 - 92 cm
35" - 36"
64 195 - 200 cm
6'5" - 6'7"
91 - 94 cm
36" - 37"
Trek Emonda Geometry Chart
Geometry Chart:
Frame size number47 cm50 cm52 cm54 cm56 cm58 cm60 cm62 cm64 cm
Wheel size 700c 700c 700c 700c 700c 700c 700c 700c 700c
A — Seat tube 44.4 47.6 49.3 50.6 53.3 55.3 57.3 59.3 61.3
B — Seat tube angle 74.6° 74.6° 74.2° 73.7° 73.3° 73.0° 72.8° 72.5° 72.3°
C — Head tube length 11.5 13 14 15.5 17.0 19.0 21 23 25
D — Head angle 71.2° 72.1° 72.8° 73.0° 73.5° 73.8° 73.9° 73.9° 74.0°
E — Effective top tube 51.3 52.1 53.4 54.3 56 57.3 58.6 59.8 61.0
G — Bottom bracket drop 7.2 7.2 7.2 7 7 6.8 6.8 6.8 6.8
H — Chainstay length 41 41 41 41 41 41.1 41.1 41.2 41.3
I — Offset 4.5 4.5 4.5 4.5 4 4 4 4 4
J — Trail 6.7 6.1 5.7 5.6 5.8 5.6 5.6 5.5 5.5
K — Wheelbase 97.4 97.4 97.7 98.1 98.3 99.2 100.1 101 101.8
L — Standover 69.8 70.7 72.9 74.2 76.7 78.6 80.4 82.2 84.1
M — Frame reach 36.9 37.4 37.9 38.1 38.7 39.1 39.5 39.8 40.1
N — Frame stack 52.2 53.5 54.7 55.5 57.7 59.6 61.5 63.4 65.4

Specs

Frame Ultralight 300 Series Alpha Aluminum, Invisible Weld Technology, tapered head tube, BB86.5, flat mount disc brakes, 12mm thru-axle, internal cable routing, DuoTrap S compatible
Fork Emonda carbon disc, carbon tapered steerer, flat mount disc brakes, 12mm thru-axle
Headset Integrated, cartridge bearing, sealed, 1-1/8-inch top, 1.5-inch bottom
Axles 12mm thru-axles

* Subject to change without notice.

Videos

Part Numbers

Option UPC MPN Store SKU
Crimson to Dark Carmine Fade / 47cm 197216123385 5328323
Crimson to Dark Carmine Fade / 50cm 197216123392 5328324
Crimson to Dark Carmine Fade / 52cm 197216123408 5328325
Crimson to Dark Carmine Fade / 54cm 197216123415 5328326
Crimson to Dark Carmine Fade / 56cm 197216123422 5328327
Crimson to Dark Carmine Fade / 58cm 197216123439 5328328
Crimson to Dark Carmine Fade / 60cm 197216123446 5328329
Crimson to Dark Carmine Fade / 62cm 197216123453 5328330
Slate to Black Fade / 50cm 601842152904 589010 EMO33689295E
Slate to Black Fade / 62cm 601842152966 589016 EMO33544162E
Slate Prismatic/Black Prismatic Fade / 47cm 197216123460 5328331
Slate Prismatic/Black Prismatic Fade / 50cm 197216123477 5328332
Slate Prismatic/Black Prismatic Fade / 52cm 197216123484 5328333
Slate Prismatic/Black Prismatic Fade / 54cm 197216123491 5328334
Slate Prismatic/Black Prismatic Fade / 56cm 197216123507 5328335
Slate Prismatic/Black Prismatic Fade / 58cm 197216123514 5328336
Slate Prismatic/Black Prismatic Fade / 60cm 197216123521 5328337
Slate Prismatic/Black Prismatic Fade / 62cm 197216123538 5328338
